Nexus Solar Energy
MPPT 5.8kW-48V Solar Off-Grid Inverter is a new generation, future ready
inverter with a creative design and a big 4.3-inch LCD display with RGB LED
ring and touch buttons. This robust solar inverter offers 40+ customizable
settings, load sharing option between solar & grid or solar & battery
and supports variety of batteries including lead acid, lithium ion &
LiFePO4 batteries. This model also comes with wide MPPT range with up to 6kW PV
output and comes with inbuilt solar generation kwh meter.

Features

• Pure Sine Wave solar inverter with up-to 93% peak efficiency
• 4.3” large coloured LCD Display with touch buttons & customizable LED Ring with RGB light
• Built in Wi-Fi monitoring via mobile app
• Compatible with Lead Acid, Lithium-Ion and LiFePO4 Batteries
• Communication RS485 port for BMS (Battery Management System)
• Setting Timer available for load priority & battery charging priority
• Inbuilt kWH Meter
• Can be used without batteries
• Connect up-to 9 inverters in parallel in single phase & three phase

Basic System Architecture

The following
illustration shows basic application for this unit. It also required the
following devices to have a complete running system:

• Generator or Utility mains.
• PV modules

Consult with
your system integrator for other possible system architectures depending on
your requirements.

This inverter
can power various appliances in home or office environment, including
motor-type appliances such as tube light, fan, refrigerator and air
conditioners.

Product Overview

• RGB LED ring (refer to LCD Setting
  section for the details)
• LCD display
• Function buttons
• PV connectors
• AC input connectors
• AC output connectors (Load connection)
• Battery connectors
• Current sharing port
• Parallel communication port
• Circuit breaker
• Power switch
• Dry contact
• USB port as USB communication port and
  USB function port
• RS-232 communication port
• BMS communication port: CAN, RS-485

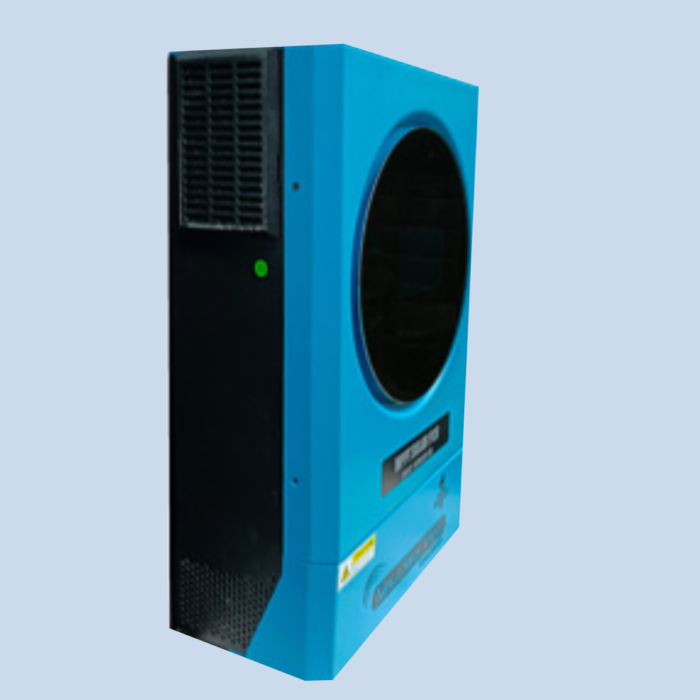

Nexus Inno 8G  5.8kW-48V OFF-Grid  Solar Inverter
