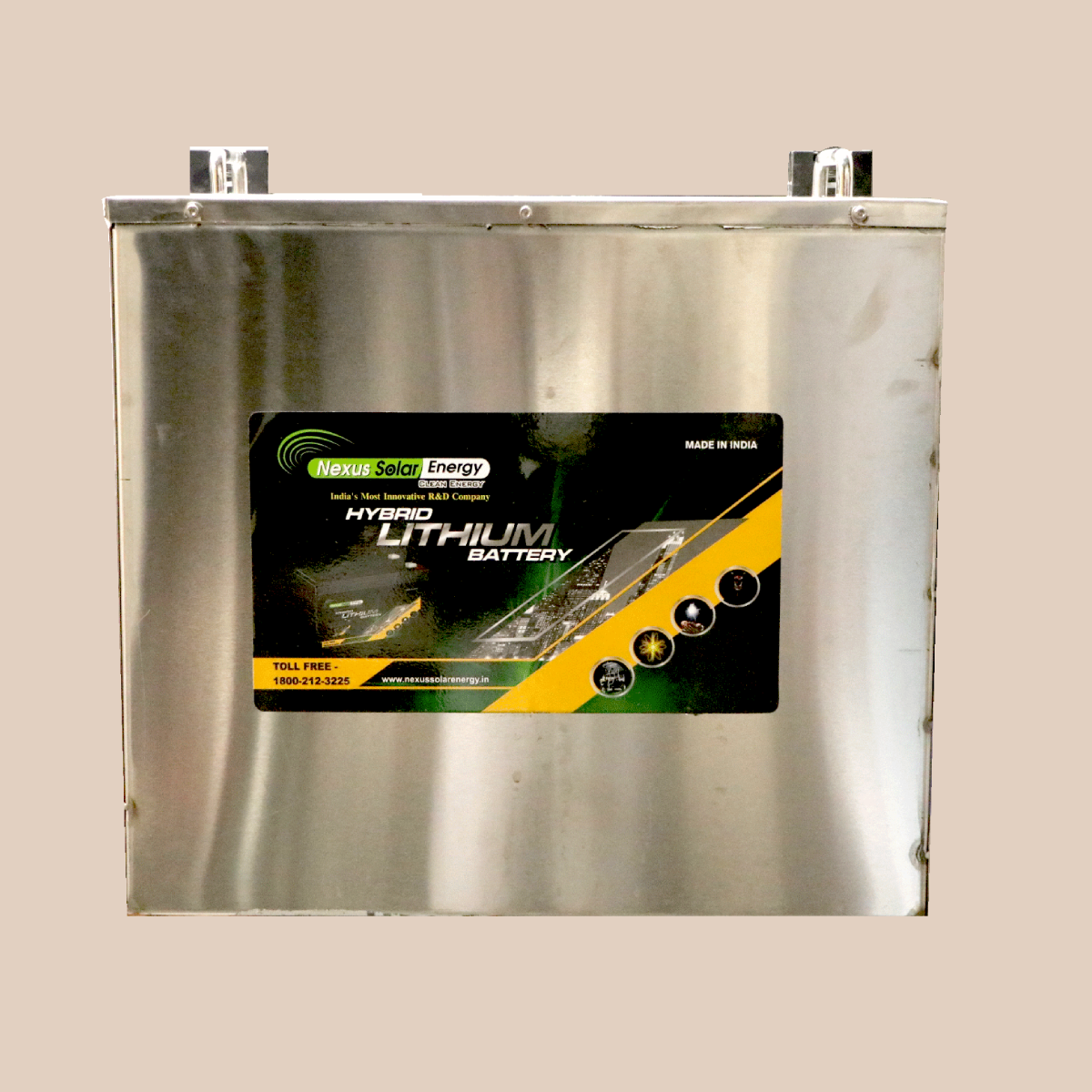

Nexus 100ah 25.6V lithium PO4 Battery
Nexus Solar Energy NEX Series is a complete range of 25.6V LiFePO4 (Lithium Iron Phosphate) Battery Products, for a wide variety of applications, such as UPS, renewable Energy system, etc., with advanced life, standard size, light weight and strong environmental adaptability.
| Rated Voltage | 25.6V |
| Rated Capacity | 100Ah ( C0.2C to 21.5V @ 25C) |
| Discharge current(Max.) | 100A |
| Discharge End Voltage | 20.5V |
| Charge Current (Recomm.) | 20 A |
| Charge Current (Max.) | 50 A |
| Dimension (LxWxH) mm | 442.5mm x 400.0mm x 225.0mm |
| Weight | 24 Kg |
| Terminal Size | M8(Screw Size) |
| Breaker | Standard |
